With a large tire width, the NCM Aspen is hugely capable. Developed in Iceland for riding on snow and ice the Fat bikes large tires surface area make it great for soft terrain including sand and gravel. This E-bike is designed with a tough aluminium frame, and a strong rigid handlebar and saddle for improved ergonomics and performance. The high top tube, makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road.
Sale
- Sku: 9041200015

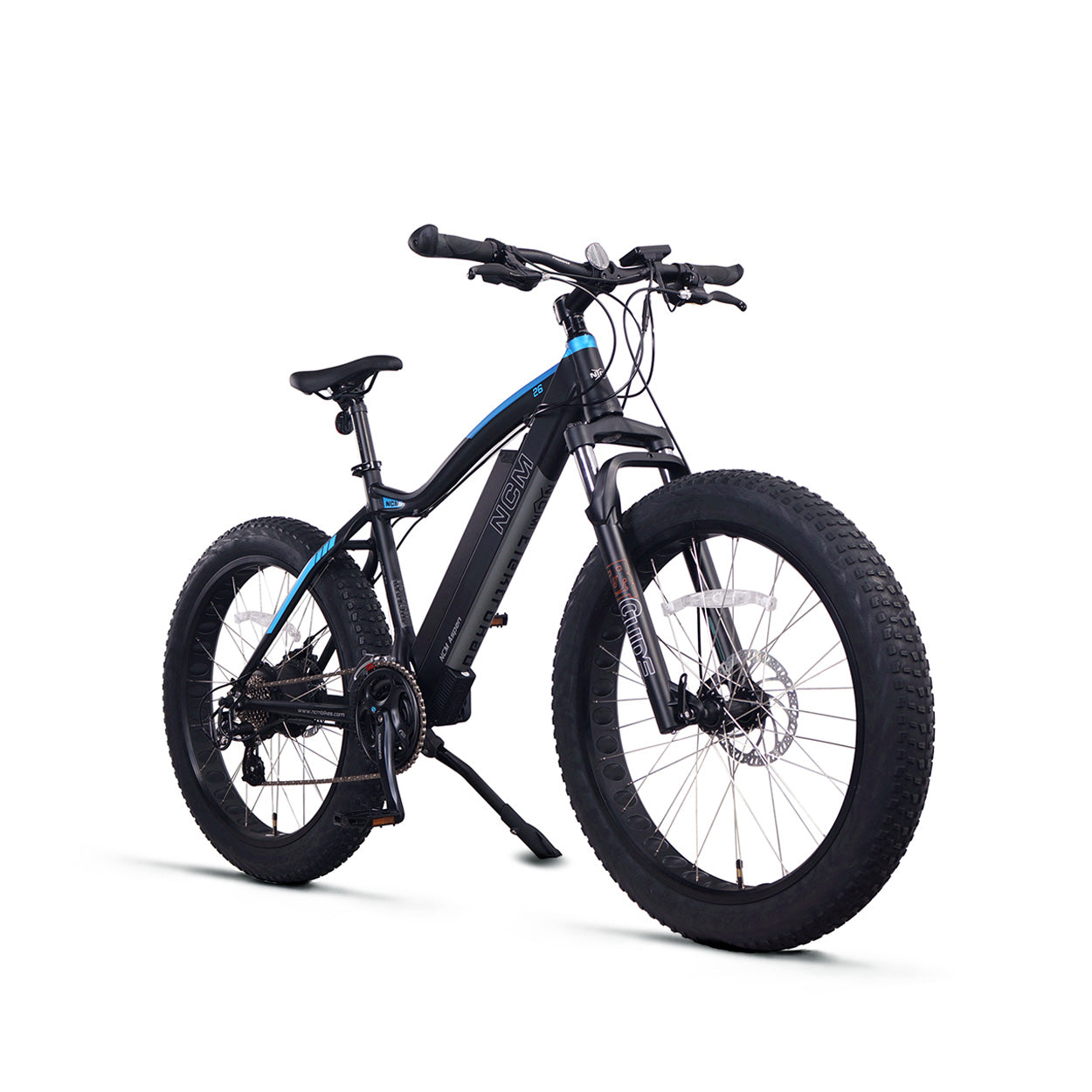

NCM Aspen
$1,399.00 USD
$979.00 USD
Shipping calculated at checkout.
Key Features
- Ergonomic bicycle Grips
- Comfortable sitting posture
- All important controls easily accessible
- Supplied with 48V to deliver a high output power
- Over 624Wh capacity for a longer distance
- Reach up to 75miles (depending on the conditions)
- Battery integrated in the frame for better aesthetics
- Easily removable battery so you can charge it anywhere
- A built-in USB port with 5V to charge mobile phones
In stock!
NCM Aspen
SPECIFICATION
| Bike Components |
| Frame | Alu. 6061, 27.5"*19 inches |
| Suspension Fork | RST, Guid-T-26, Alu. with suspension |
| Brake | Tektro Mechanical Disc Brakes |
| Freewheel | 7 Speed, 14-28T, Silver |
| Tire | CST, C1752, 26"*4.0, Black |
| Saddle | VELO, VL-3410, with "NCM" logo, Black |
| Stem | Promax. Alu.MA-471, Ext 90mm |
| Crank | Das-kit, CM48, 28/38/48T |
| Shifter | Shimano, Altus, F: M315-L, 3-Speed; R: M315-7R, 7-Speed |
| Front Derailleur | Shimano, Altus, FD-M310 |
| Rear Derailleur | Shimano, Altus, RD-M310 |
| Chain | KMC, Z51 |
| Electric Components |
| Battery | Das-Kit, i5-4813, 48V 13AH, 624WH |
| Motor |
Das-Kit, X15F, 48V 500W / 750W, 32KM/H |
| Controller | Das-Kit, CT5-I5, 48V 18A |
| Charger | Das Kit, 48V2A |
| Display | Das-Kit, L7 |
| Front Light | DH002 48V, 40 Lux |
| Rear Light | DR009, AAA*2 |
| Weight |
| Net Weight (with battery) | 59 lbs |
| Battery Weight | 7.5 lbs |
| Total Weight (driver+bike) | 308 lbs |
Suitable for riders 160cm+ |
| Sizing my vary for each individual. Please refer to the stand over height in the chart below to find the best fit for you. |
Aspen / Aspen Plus |
|
| A Stand over height | 31.9" |
| B. Wheel base | 46.1" |
| C. Frame Size | 18.9" |
| D. Min/Max seat height | 35"- 42.5" |
| E. Reach | 20.9" |
| F. Overall length | 72.1" |
