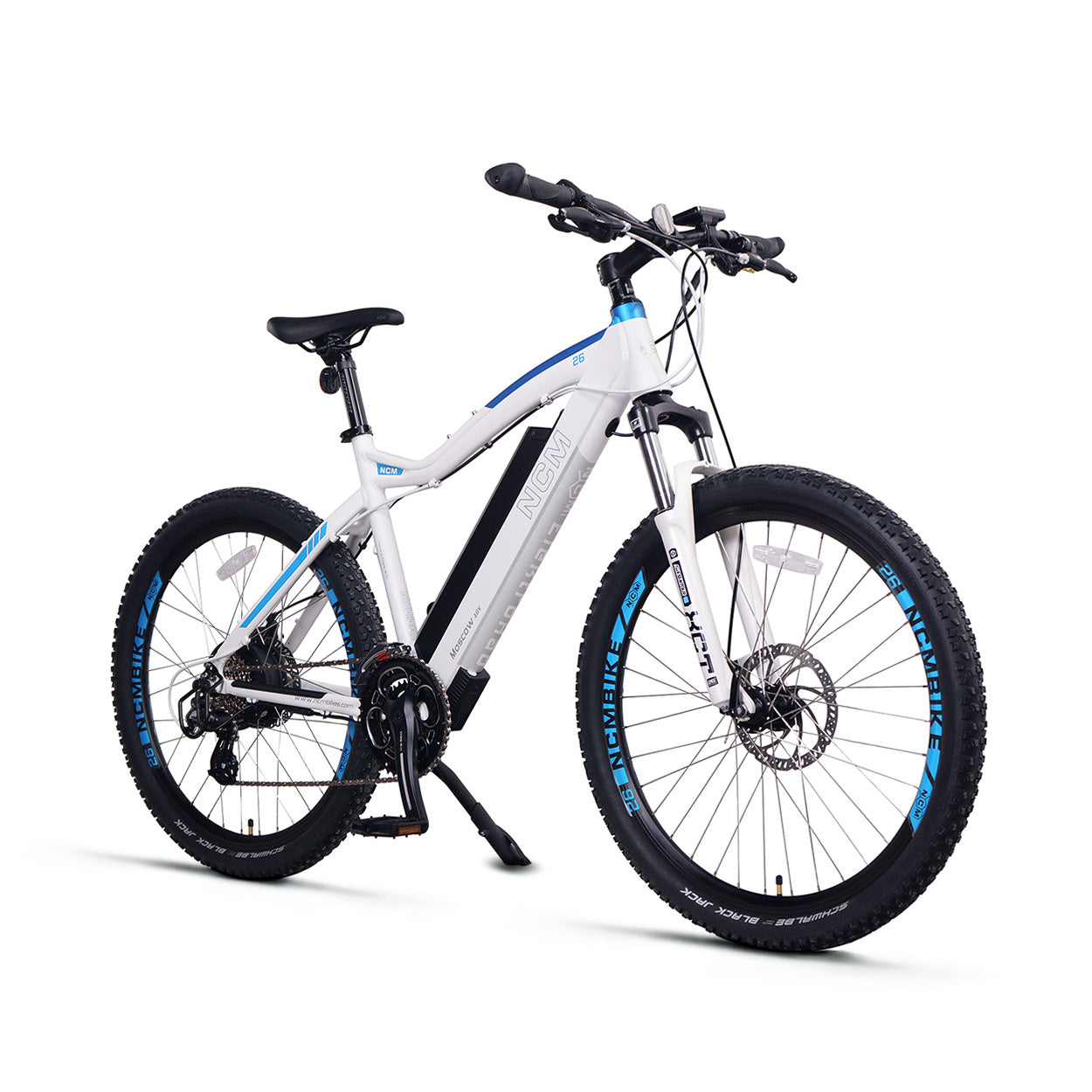

NCM Moscow

Rugged and capable, the NCM Moscow is hugely versatile.

Focusing on usability and capability, this E-bike is designed with a tough aluminium frame, and a strong rigid handlebar and saddle for improved ergonomics and performance. The high top tube, while makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road.

Skip to product information
  • Sku: 9041200017

NCM Moscow

$1,299.00 USD
 per
Shipping calculated at checkout.

Key Features

  • Reinforced integrated battery
  • Custom front light to enhance visibility
  • Easily removable battery to charge it anywhere
  • Reach up to 68 miles(depending on the conditions)
  • Ergonomic bicycle grips
  • Comfortable sitting posture
  • All the important controls easily accessible
Just 4 left. Order soon!
Color
Size
View full details

NCM Moscow

SPECIFICATION

Bike Components
Frame
Alu. 6061, 26"*17 inches / Alu. 6061, 27.5"*19 inches / Alu. 6061, 29"*20.5 inches
Suspension Fork
Suntour, XCM-HLO
Brake
Tektro Hydraulic Disc Brakes
Freewheel
8 Speed, 11-32T
Tire
Schwalbe, Black Jack, Smart Sam
Saddle
Selle Royal, Lookin-A200UR, Black
Crank Das-Kit, CM48, 28/38/48T
Front Derailleur
Shimano, Altus, FD-M310
Rear Derailleur Shimano, Acera, RD-M360
Shifter Left Shimano, Altus, F:SL-M315-L, 3 Speed
Shifter Right Shimano, Altus, R:SL-M315-8R, 8 Speed
Chain KMC Z51
Electric Components
Battery
Das-Kit, i5-4816, 48V 16AH, 768WH
Motor
Das-Kit, X15, Rear drive motor, 48V 500W, 25mph
Controller
Das-Kit, CT5-i5, 48V 18A
Charger Das-Kit, 48V3A
Display
Das-Kit, C7 US3, up to 25mph with pedal assist, 20mph with throttle
Weight
Net Weight (with battery) 57 lbs
Battery Weight
9.1 lbs
Total Weight (driver+bike) 275 lbs

SIZES GEOMETRY

SIZE GUIDE

SUPPORT DOWNLOAD

NCM CATALOGUE

Suitable for riders 160cm+

Sizing my vary for each individual. Please refer to the stand over height in the chart below to find the best fit for you.
26"
27.5"
29"
A Stand over height 29.9" 30" 32.5"
B. Wheel base 42.5" 42.5" 43.7"
C. Frame Size 18.8" 19" 20"
D. Min/Max seat height 33"- 40.9" 34.2"- 40.5" 35"- 41.7"
E. Reach 16.1"
21"
21"
F. Overall length 70"
70.8"
73"
