Balancing accessibility with superior specifications, the NCM T7s is a step-through e-trekking bike for riders that are eager to tackle longer routes alongside their daily rides and want an ebike with the range and the integrity to help them do it.
![NCM T7s](http://www.leoncycle.com/cdn/shop/products/T7s_lavendor.jpg?v=1681192558&width=1445)
![NCM T7s](http://www.leoncycle.com/cdn/shop/products/T7s_bk.jpg?v=1681192558&width=1445)
![NCM T7s](http://www.leoncycle.com/cdn/shop/products/T7s_sand.jpg?v=1681192558&width=1445)

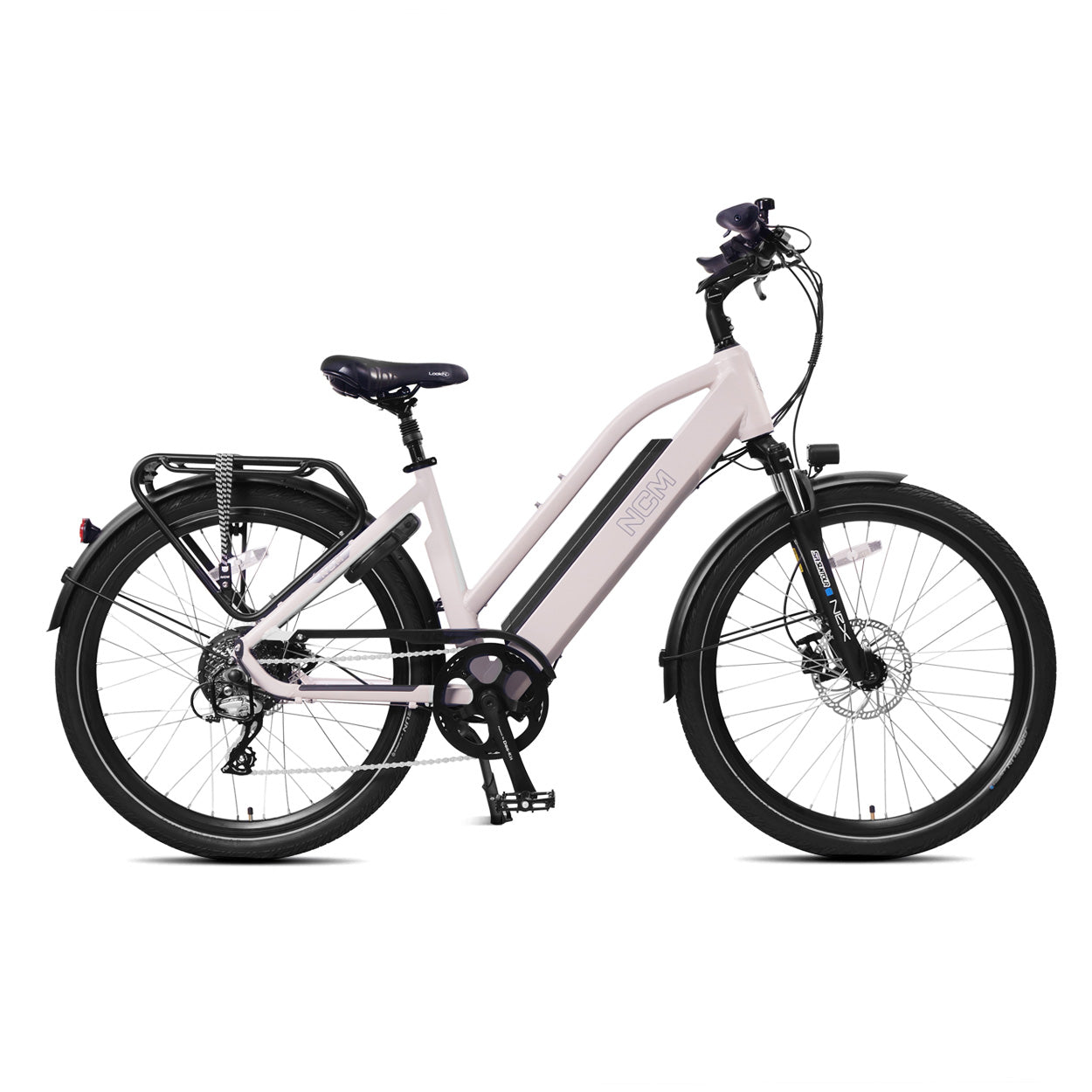

NCM T7s
SPECIFICATION
Bike Components |
Frame | Alu. 6061, 26"*16.5 inches |
Suspension Fork | Suntour, ANGEL-TNL, with hydraulic lock system, Magnesium |
Brake | |
Freewheel | LY, 8 Speed, 11-32T, Silver |
Tire | Arisun, H-5213E, 26*2.15, Black |
Saddle | Selle Royal, Lookin- Black |
Stem | Promax, MA-579 |
Crank | Das-Kit, 52T |
Shifter | Shimano, Altus, R: SL-M315-8R, 8 Speed, BK |
Derailleur | Shimano, Acera, RD-M360 |
Chain |
KMC, Z8.3RB, Silver |
Electric Components |
Battery | Das-Kit, i7-4819, 48V 19AH, 912WH, with TAG Technology |
Motor | Das-Kit, X15, Rear Drive Motor, 48V 750W, 28mph |
Controller | Das-Kit, T7+, 48V 22A |
Charger | Das Kit, 48V3A |
Display | Das-Kit, C8 US3, with USB |
Front Light | DH007Plus, 48V, 70Lux |
Weight |
Net Weight (with battery) | 64.2 lbs |
Battery Weight | 10.6 lbs |
Total Weight (driver+bike) | 308.6 lbs |
![](http://www.leoncycle.com/cdn/shop/files/sizes-t7.jpg?v=1690868742&width=1024)
Suitable for riders 160cm+ |
Sizing my vary for each individual. Please refer to the stand over height in the chart below to find the best fit for you. |
26" |
|
A Stand over height | 28" |
B. Wheel base | 42.3" |
C. Frame Size | 17" |
D. Min/Max seat height | 34"- 39.3" |
E. Reach | 15.9" |
F. Overall length | 68.7" |
